Guangying 138/206 Series Panoramic Sliding Door

Sliding doors can bring excellent ventilation and landscape effects to balconies. However, traditional sliding doors are difficult to meet the requirements of large door leaf area and sealing performance. Suozhe Doors and Windows has launched the light and shadow panoramic sliding door, which combines functionality and design, setting a new standard for panoramic sliding.

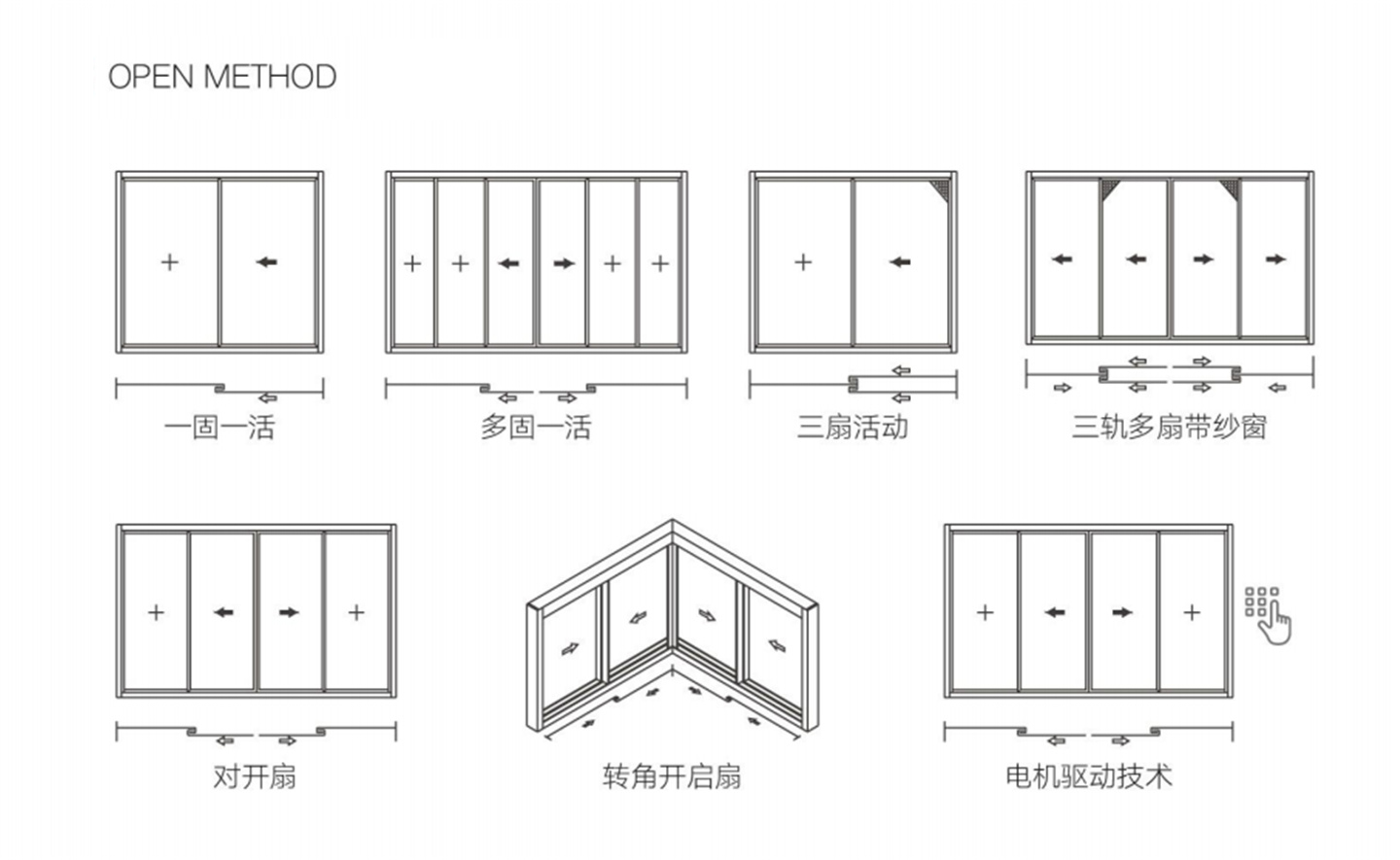

The Light and Shadow(GUANGYING) series can be opened by push-pull or electric sliding.

1. The frame visible surface of the Light and Shadow series panoramic door can be completely hidden into the ceiling and floor. The 32mm reinforced flush hook, while the small hook with non-flush finish is only 14mm, is not only aesthetically pleasing and slim but also has a humanized handle function.

2. The Light and Shadow series features spacers made of brand-new materials, which integrate anti-collision, heat insulation and sealing properties. This novel design ensures a seamless fit at the hook and hook parts.

After the door leaf is closed, the Z-shaped interlocking structure ensures the thermal and sealing performance of the mullion part within an extremely narrow visible area of 32mm.

4. The suspended linear rail technology, the clamping high-load-bearing pulley block and the ability to continuously add pulleys can support a large area of glass, making the sliding door more transparent.

5. The 45-degree beveled Angle screw connection technology is adopted to ensure the strength of the entire window.

6. Hidden light lock, the hardware components are located at the hook lock position. Under the premise of ensuring the basic lock, the fully hidden frame is used to achieve a more extreme field of vision.

The 7.65 linear track is designed with a large load-bearing capacity and high water tightness, allowing the sweeping robot to pass through without any obstacles.

8. The maximum plate thickness is 41mm, allowing for the application of 12mm glass to achieve large-sized fan design, with a maximum load capacity of 1000KG per fan.

9. It features high-load-bearing two-track, four-track and three-track, six-track structures. The cover plate is equipped with humanized functions such as installation without disassembly and easy cleaning and disassembly.

Whether it's the hustle and bustle of the street or the noise from neighbors, all can be "shut out", providing you with a quiet and comfortable living environment.
