Hailun 155 Series Sliding Window
Sliding Window

Hailun 155 Series Sliding Window

SOUND INSULATION     Lv. 4

WATER TIGHTNESS     Lv. 6

AIR TIGHTNESS     Lv. 8

WIND PRESSURE RESISTANCE     Lv. 9

INSULATION PROPERTY     Lv. 6

    Product Features

    At present, there are various types and styles of doors and windows, but sliding windows are still favored by many families for their advantages such as flexible opening, good ventilation and unobstructed views. Hailun sliding system windows are easy to open, do not take up space, and have ideal ventilation and lighting effects, which can easily meet the needs of modern living.
    1. By designing a structured drainage system based on the principle of isobaric pressure, it is more conducive to the rapid drainage of rainwater, preventing rainwater from accumulating in the tracks and causing internal flooding or seepage, and further enhancing the waterproof performance of doors and Windows.
    2. High-quality SUOZHE hardware accessories are carefully selected. They are easy and flexible to open, beautiful and comfortable, and durable.
    3. The new frame-wrapped sash design perfectly integrates the glass sash into the frame, making the air tightness, water tightness and sound insulation of the entire window better, and facilitating installation.
    4. The appearance is extremely narrow, with the visible surface of the sash being only 33mm. This ensures the stability of the window sash while also providing sufficient light and a wide field of vision. It can also be made into a large sash to maximize the viewing field of vision.
    5. The wheels feature a double-row design, which is quieter and more load-bearing. The slide rails are made of high-quality 304 stainless steel, which is more wear-resistant and less prone to deformation, ensuring balanced force distribution without shaking.
    6. It adopts a multi-layer silicon wool strip design. The wool strips that have undergone silicification treatment have better water resistance, anti-aging property and anti-wear ability. Meanwhile, the multi-layer structure design enhances the sealing performance of the window sash, which can better resist the invasion of wind and rain and also prevent the entry of flying mosquitoes, insects and ants, ensuring the safety of your home.
    7. It is equipped with double-layer insulating tempered glass as standard, which not only has better light transmission but also superior performance in all aspects. With the characteristics of wide vision, high lighting and high transparency, it perfectly combines the aesthetics of space with the needs of home decoration.
    8. It adopts high-quality primary aluminum profiles, which have excellent corrosion resistance and load-bearing capacity, and can extend the service life of the entire window.
    A sliding window, with its opening and closing, interweaves the beauty of the natural scenery outside with the warmth and vitality of the interior, infusing the home with a unique sense of warmth and beauty.

    Product Configuration

    Border width

    155mm

    Profile wall thickness

    External Frame 1.8mm,Internal Sash 2.0mm.

    Strip configuration

    EPDM sealing rubber strip

    Glass configuration

    5mm+20A+5mm

    Hardware system

    SUOZHE Hardware

    Screen Configuration

    Diamond Net / Imported PET 48-mesh High-definition Screen

    Opening mode

    Sliding

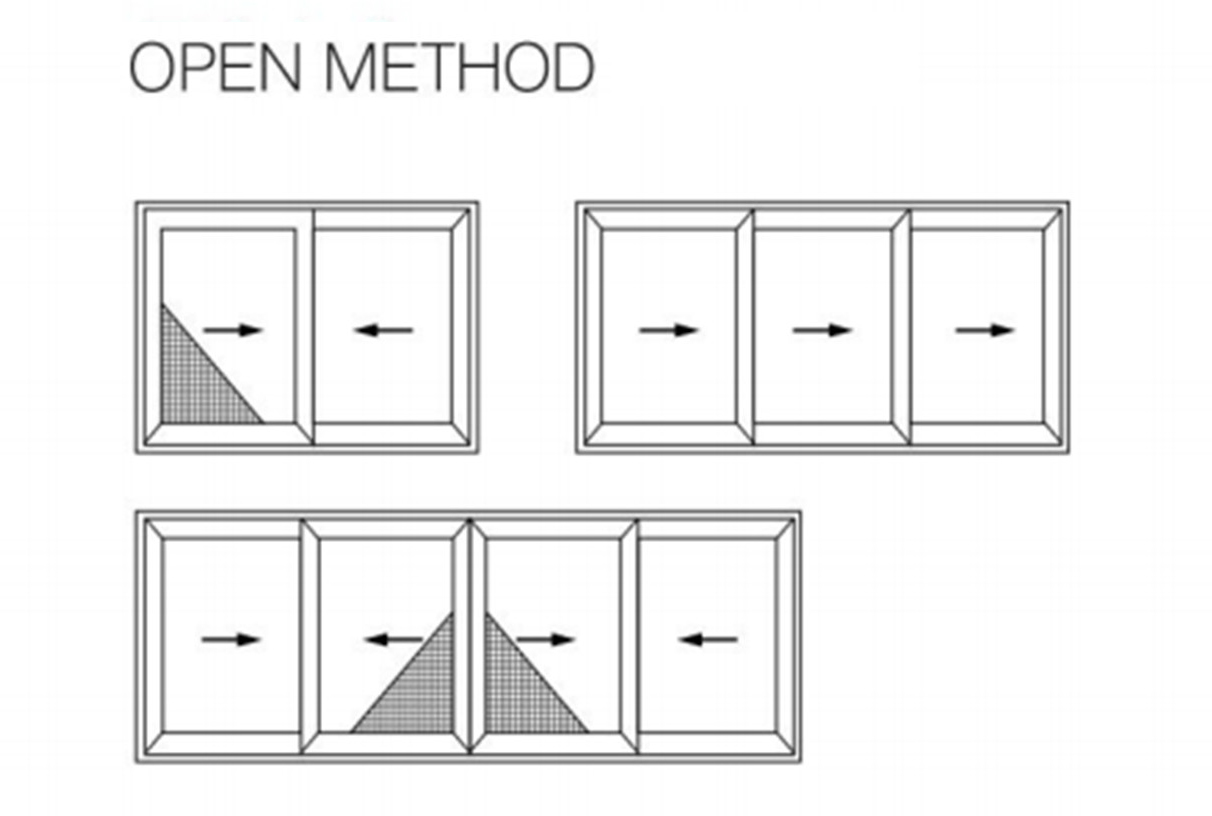

    1744872007829

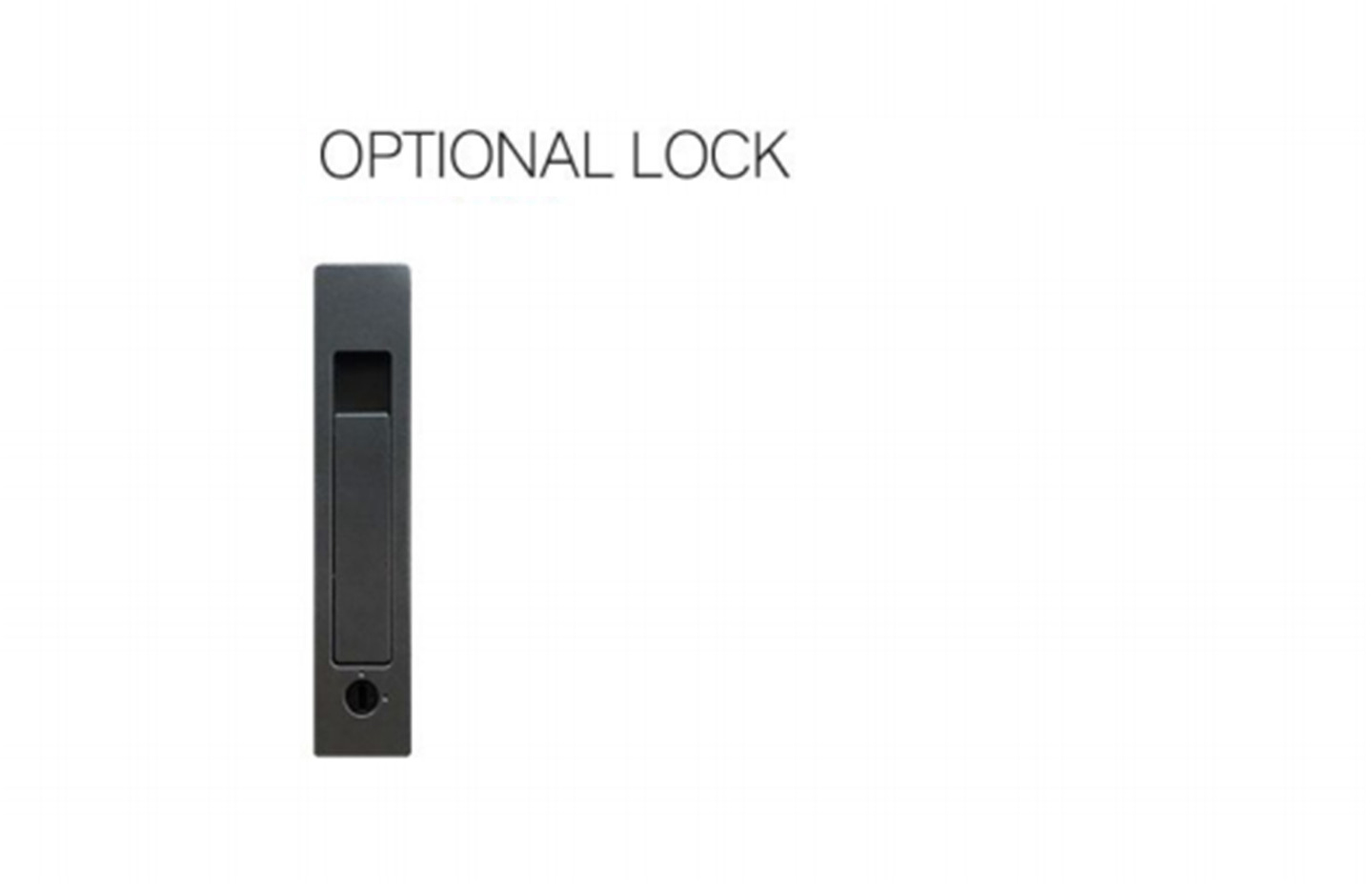

    1744871975918
    Porcelain swimming gray

    Porcelain swimming gray

    coffee

    coffee

    Galactic Black

    Galactic Black

    Moonlight Grey

    Moonlight Grey

    champagne gold

    champagne gold

    Suozhe Hui

    Suozhe Hui

    Warm White

    Warm White

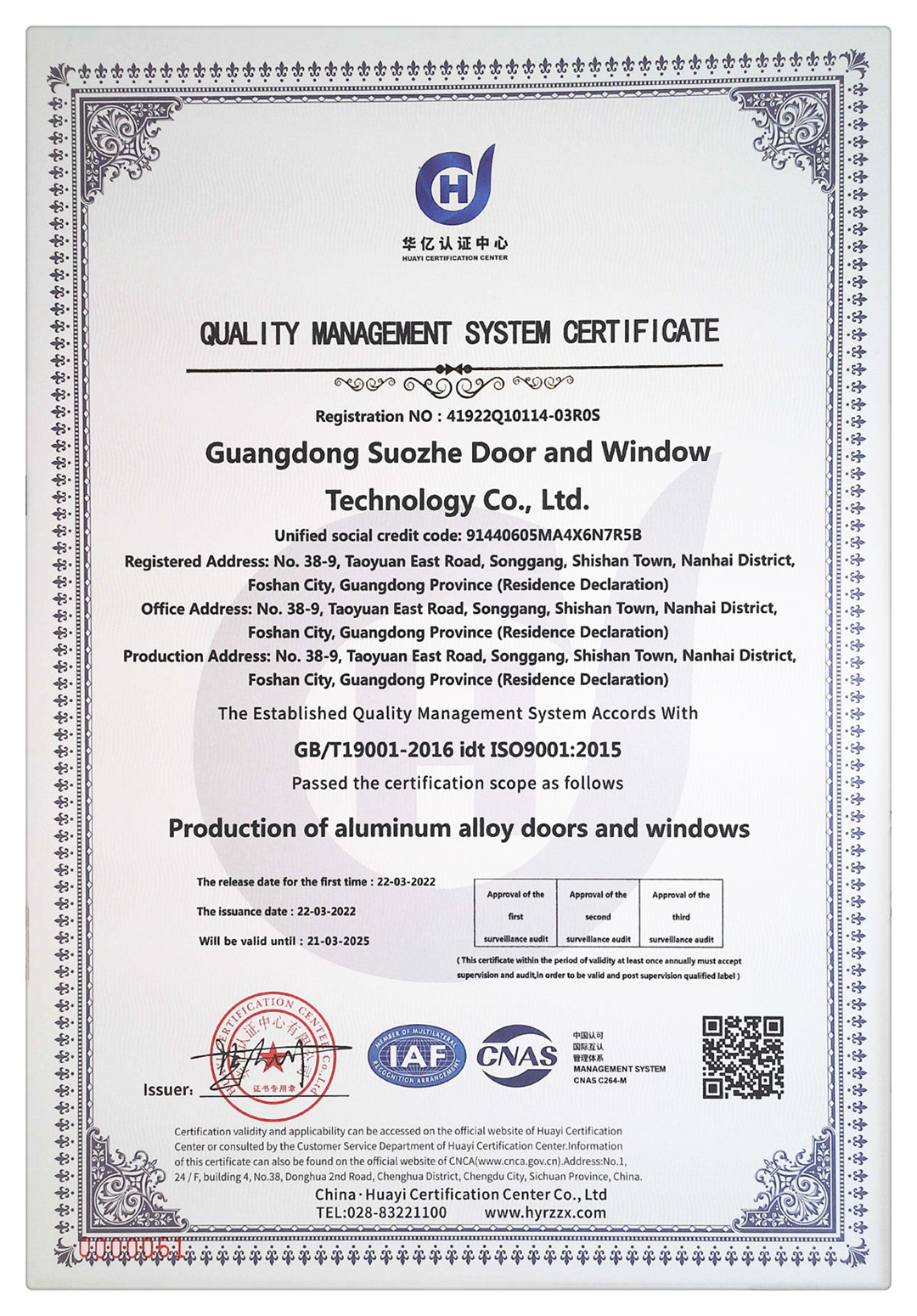

    acbing (1)acbing (2)acbing (3)
